🔥Low Voltage Induction Heating Power Supply Module🔥

FEATURES

LOW VOLTAGE HEATING MODULE: This section of induction heating using low-voltage  DC 5V~12V(This voltage range is the voltage during operation, not the voltage when the power supply is unloaded); Maximum power 1000W, maximum current 10A ; The higher the voltage, the higher the heating current, the better the effect.

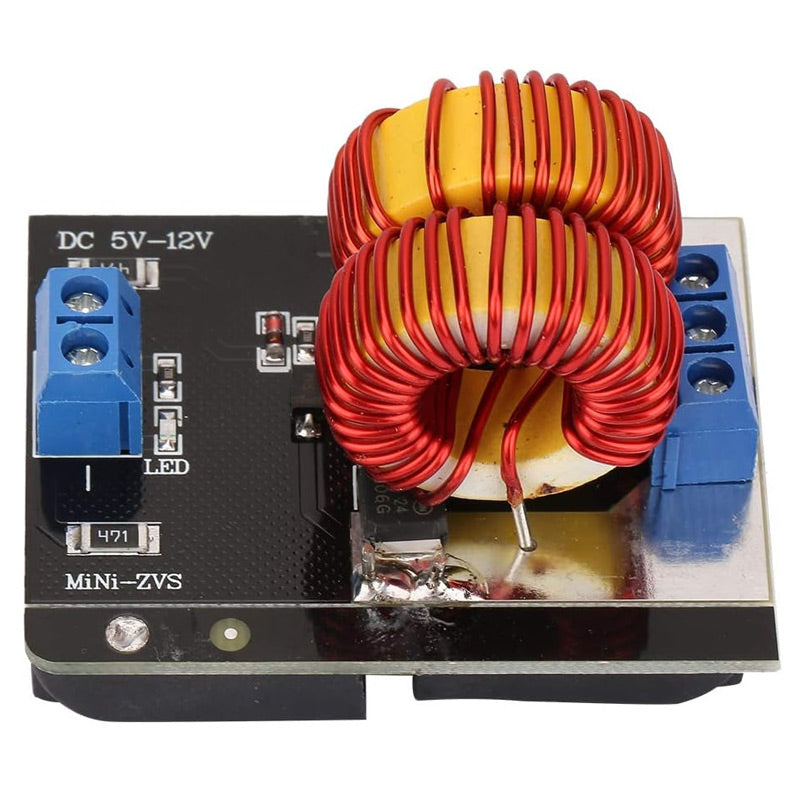

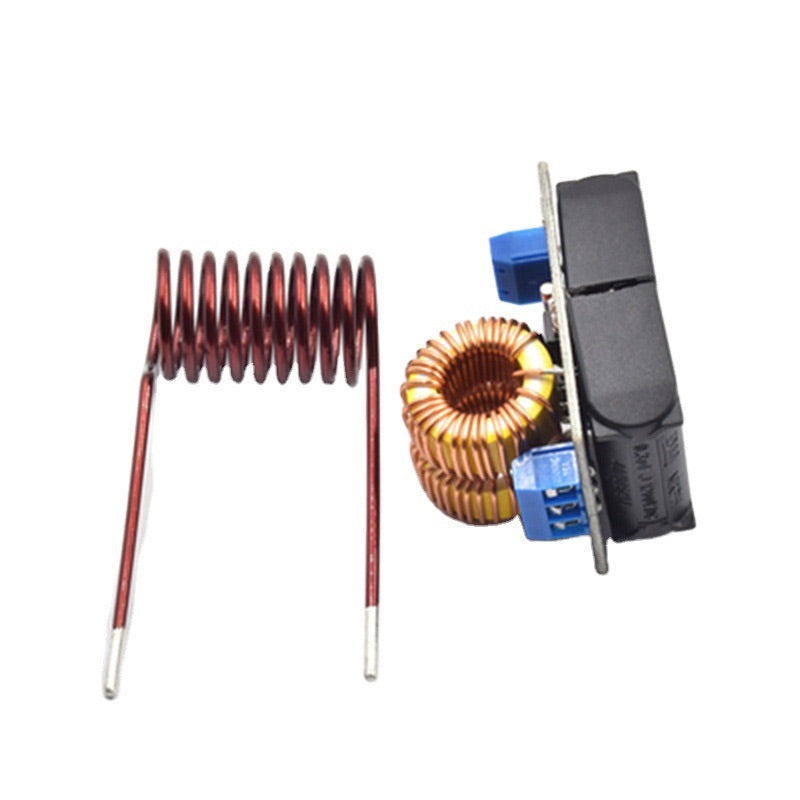

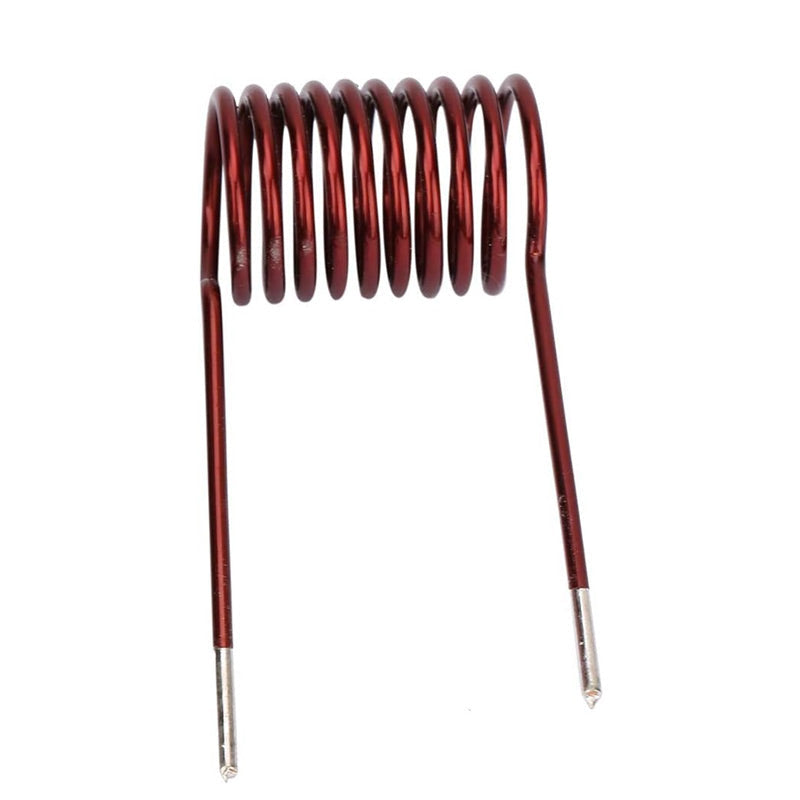

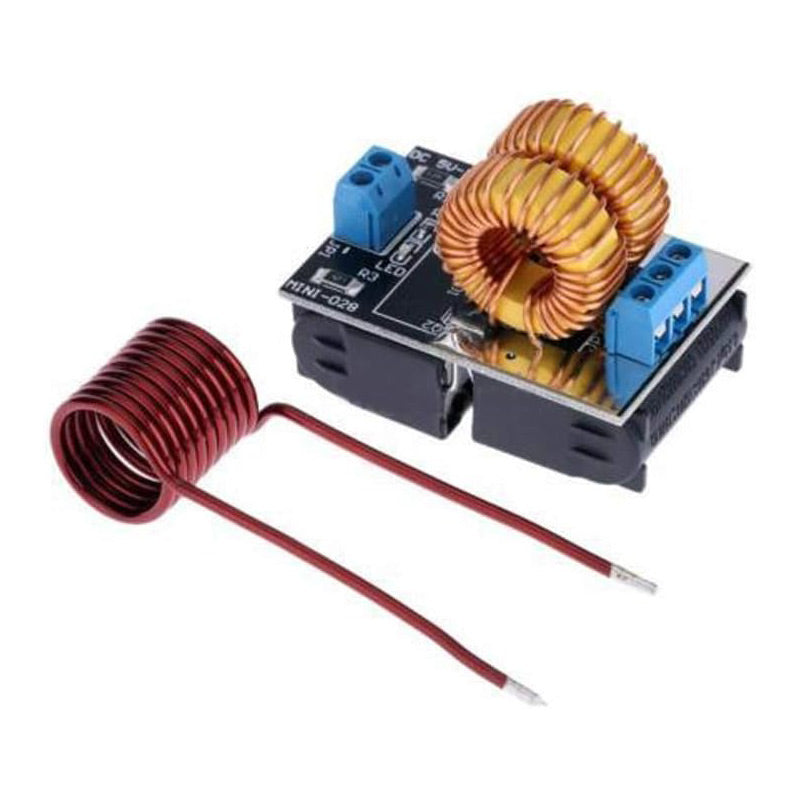

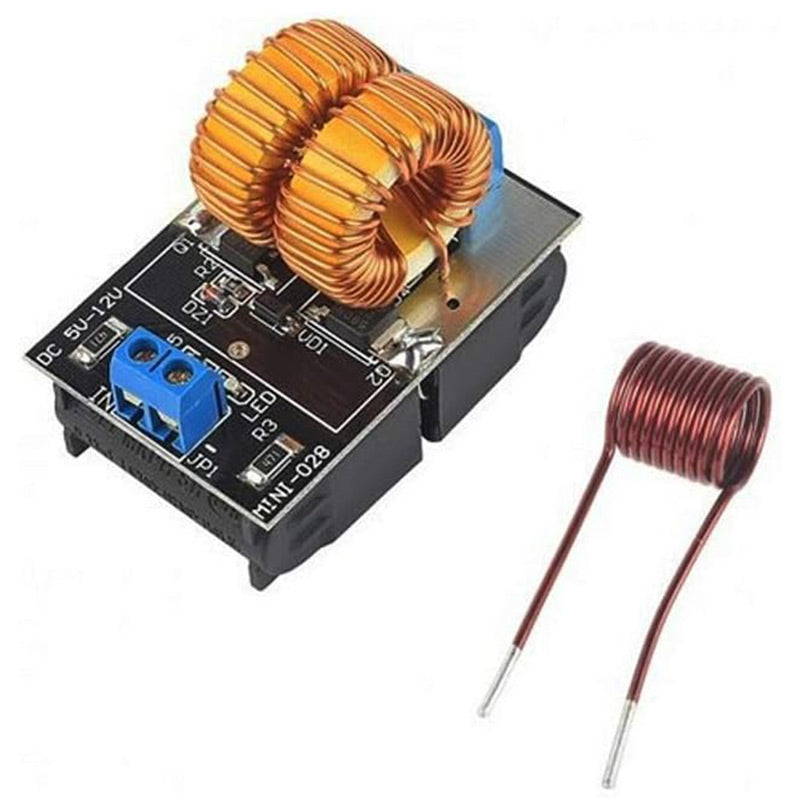

DRIVER BOARD WITH HEATING COIL: ZVS heating power supply module includes heating coil. Because of its moderate power, this induction heating board module can do hardening, annealing and any other heat treatment.

EASY TO USE: Low Voltage Heater Ignition Coil Flyback Driver can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient.

HIGH QUALITY MATERIAL: This induction heat board is made of high quality FR4 material, nontoxic, corrosion and wear resistant, durable and high strength, has a long service life.

VERSATILE APPLICATIONS: Perfect for heating small metal objects, DIY projects, scientific experiments, and induction heating demonstrations.

SPEC

Material: FR4 + Copper

Maximum power: 1000W

Current: 10A

Working Voltage: 5V~12V

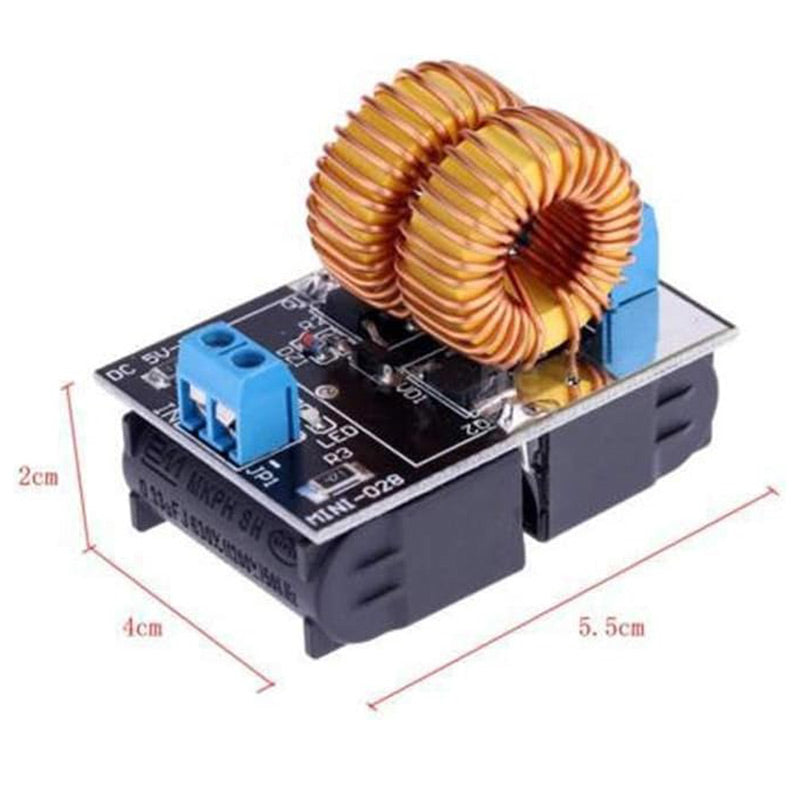

PCB board size: 55mm*37mm*1.6mm

Package Included: 1*Low Voltage Induction Heating Power Supply Module

NOTES

Requires adequate cooling to prevent overheating.

Not suitable for long-duration high-power heating.

Ensure proper connection to avoid short circuits.
